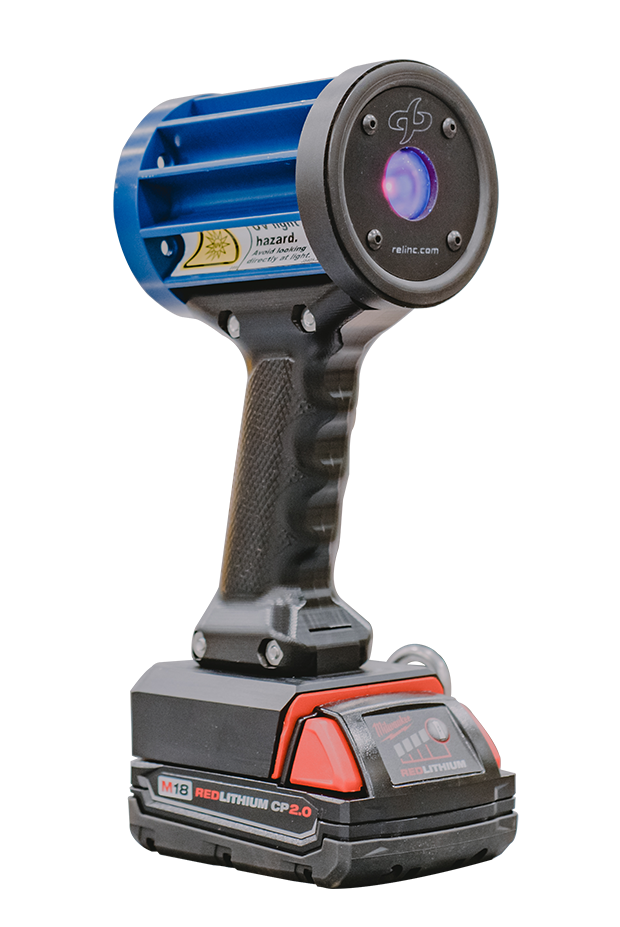

UV-2400, C4 Nomad Battery Powered LED UV-A Lamp

UV-2400, C4 Nomad LED UV-A Lamp (Blacklight), (2) 18V 2 amp hour batteries in a tool control system.

The REL C4 Nomad LED UV-A Inspection Lamp integrates a single high-flux LED UV-A emitter. The battery powered C4 Nomad provides a highly maneuverable lightweight solution that allows operator flexibility. The C4 Nomad is powered by the versatile Milwaukee RedLithium 18V battery pack.  This allows the operator to choose the optimal amp/hour battery best suited for their continuous use application.

The C4 Nomad is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). REL’s C4 Nomad Inspection Lamp contains a single high flux LED UV-A emitter with a built-in electro-static discharge circuit. The C4 Nomad provides a 10-inch diameter of UV-A intensity above 1000 μW/cm2 at 15 inches. The integral filter in the UV-A emitter limits the visible light to 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches. The lamp’s electrical components are sealed and passively cooled within an engineered finned housing manufactured from a military grade aluminum alloy. This allows the lamp to perform in the toughest, wettest, and most severe work environments on the planet!

C4 Nomad Glo-Black LED UV-A Inspection Lamp attributes:

• Certificate of Conformance and a serialized validation reports
• Tested & Complies with Rolls-Royce RRES 90061 Requirements
• Tested & Complies with ASTM E3022 Standard
• Meets Specifications ISO 3059
• Refurbishable

UV-2400, 2-year manufacturers warranty.

REL-Glo-Black-Lamp-Catalog
